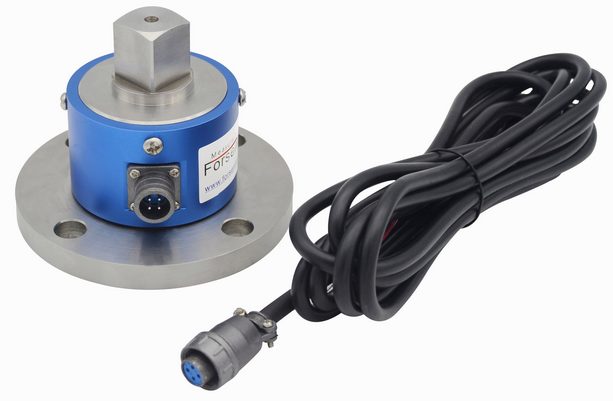

Flange to square torque sensor 500NM 300NM 200NM 100NM 50NM 20NM

Place of Origin : China

Brand Name : Forsentek

Model Number : FT04

MOQ : 1pc

Packaging Details : 1pc/box

Delivery Time : 3~20 working days

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 1000pcs/month

Usage : Reaction torque measurement

Theory : Strain gauge torque sensor

Output : Analog Sensor

Torque direction : Clockwise & Counterclockwise

Contact Now

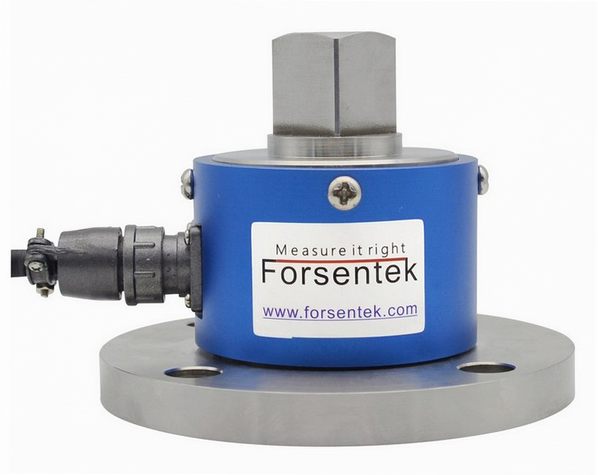

Flange to square torque sensor 500NM 300NM 200NM 100NM 50NM 20NM

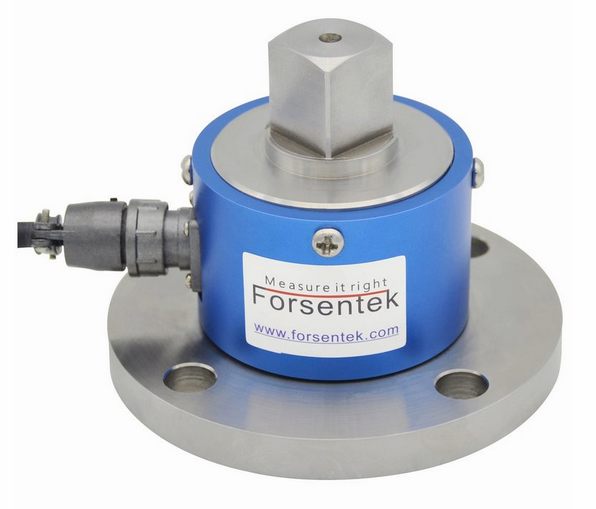

Flange to square torque sensor 500NM 300NM 200NM 100NM 50NM 20NM

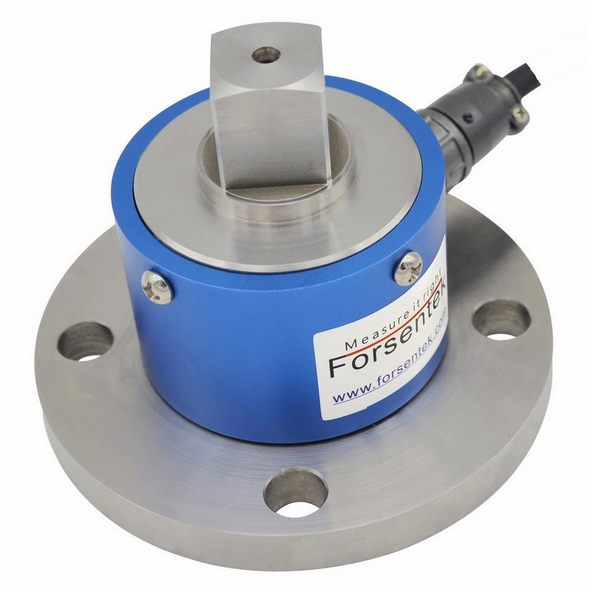

Flange to square torque sensor 500NM 300NM 200NM 100NM 50NM 20NM

Features

  • Alloy steel construction
  • Square drive to flange mounting,easy to install
  • Strain gauge technology,high accuracy
  • Non-rotating torque measurement

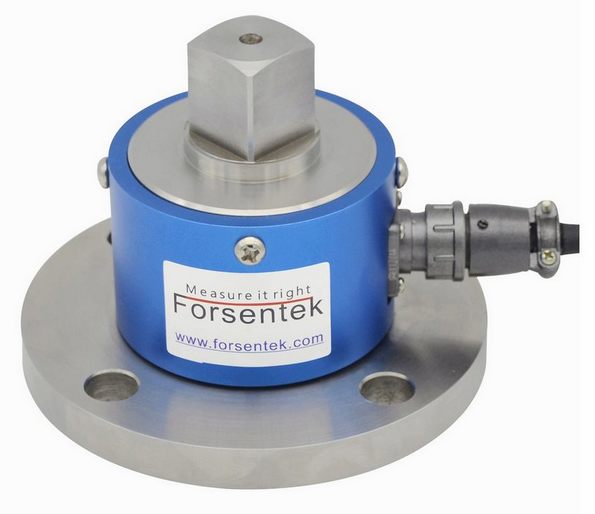

Flange to square torque sensor 500NM 300NM 200NM 100NM 50NM 20NM

Dimensions

Flange to square torque sensor 500NM 300NM 200NM 100NM 50NM 20NM

Flange to square torque sensor 500NM 300NM 200NM 100NM 50NM 20NM

Specifications

Capacity 500NM 300NM 200NM 100NM 500NM 20NM
Rated output 1.5 mV/V
Excitation 3-15V
Zero balance ±2% R.O.
Nonlinearity ±0.2% R.O.
Hysteresis ±0.2% R.O.
Nonrepeatability ±0.1% R.O.
Creep(10min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.01% R.O./oC
Temperature shift span ±0.01% R.O./oC
Input resistance 350±30 ohms
Output resistance 350±10 ohms
Insulation resistance >5000M ohms
Ingress protection IP62
Material of element Stainless steel
Cable Ø5*3000mm
Wiring code Red--E+ Black--E- Green--S+ White--S-
