Pull load cell 5kg 10kg 20kg 30kg 50kg

Place of Origin : China

Brand Name : Forsentek

Model Number : Pull load cell FL25

MOQ : 1pc

Packaging Details : Carton

Delivery Time : 3~25 working days

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 5000pcs/month

Usage : Pull force measurement

Theory : Strain gauge load cell

Output : Analog Sensor

Certification : CE

Force measure direction : Tension and compression

Contact Now

Pull load cell 5kg 10kg 20kg 30kg 50kg 100kg

Features

  • CE approved
  • Stainless steel construction,in-line structure.
  • M5/M6 threads on both sides,easy to install.
  • Pull push force measurement.

Application

  • Axial force measurement
  • Air cylinder pull push force measurement
  • Welding force control
  • Testing machine
  • Assembly line

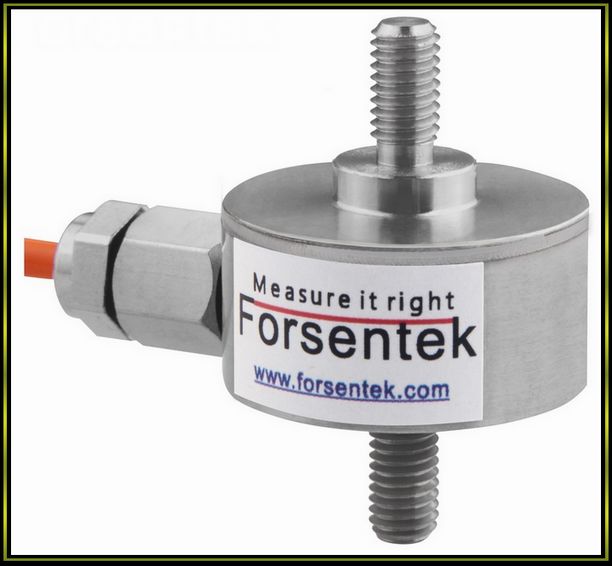

Pull load cell FL25

Pull load cell 5kg 10kg 20kg 30kg 50kg

Specifications

Capacity 5kg 10kg 20kg 30kg 50kg 100kg
Rated output 2.0mV/V
Excitation 5-15V
Zero balance ±2% R.O.
Nonlinearity ±0.3% R.O.
Hysteresis ±0.3% R.O.
Nonrepeatability ±0.1% R.O.
Creep(30min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.01% R.O./oC
Temperature shift span ±0.01% R.O./oC
Input resistance 700±30 ohms
Output resistance 700±5 ohms
Insulation resistance >5000M ohms
Ingress protection IP64
Material of element Stainless steel
Cable Ø3*1500mm
Wiring code Red--E+ Black--E- Green--S+ White--S-

Dimensions

Pull load cell 5kg 10kg 20kg 30kg 50kg

Ordering Code: FL25-5kg, FL25-10kg, FL25-20kg, FL25-30kg, FL25-50kg, FL25-100kg
