M3 Threaded Miniature Force Transducer With 10mm Diameter Tension Compression Sensor
M3 Threaded Miniature Force Transducer With 10mm Diameter FLAE is made of stainless steel utilizing strain gauge technology to deliver maximum 0.2% non-linearity of rated output. Micro Tension Compression Load Cell FLAE offers 0-1kg / 0-2kg / 0-5kg / 0-10kg / 0-20kg (0-10N / 0-20N / 0-50N / 0-100N / 0-200N) five rated capacities to choose from. M3 threaded holes located on two sides of the transducer can be used to mount attachments or implements to adapt to different force measurement cases, miniature cylindrical load cell FLAE can be used for both tension and compression force measurement. Stainless steel construction, compact size, bidirectional force measurement, high accuracy, 10mm diameter tension compression Load Cell FLAE offers a perfect mixture for applications such as wire tension control, force distribution analysis, automated control, touch screen click test, assembly force monitoring, spring testing, connector insertion and extraction force measurement and so on. In addition to the standard specifications, Forsentek is also capable of providing custom design service to meet requirements of different applications.
| Ordering code | Measurement Range | Force direction |
| FLAE-10N | 0-10N / 0-1kgf | Tension and compression |
| FLAE-20N | 0-20N / 0-2kgf |
| FLAE-50N | 0-50N / 0-5kgf |
| FLAE-100N | 0-100N / 0-10kgf |
| FLAE-200N | 0-200N / 0-20kgf |
Specifications
| Capacity | 10N / 1kgf / 2lb
20N / 2kgf / 4lb
50N / 5kgf / 11lb
100N / 10kgf / 22lbs
200N / 20kgf / 45lbs |
| Rated output | 2.0 mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.2% of the capacity |
| Hysteresis | ±0.2% of the capacity |
| Nonrepeatability | ±0.1% of the capacity |
| Creep(5min) | ±0.1% of the capacity |
| Safe overload | 150% of the capacity |
| Ultimate overload | 200% of the capacity |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.03% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 380±30 ohms |
| Output resistance | 352±3 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP50 |
| Material of element | Stainless steel |
| Cable | Ø2*3000mm 4-core shielded |
| Wiring code | Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
M3 Threaded Miniature Force Transducer With 10mm Diameter Tension Compression Sensor
A Force Sensor is a transducer that converts mechanical load into mV signal proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the transducer.
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Micro Force Sensor FLAE is around 2.0mV/V.
Power supply of Miniature Force Transducer FLAE is normally within 3-12V.
Load / Capacity is within 0-1.
So the output range of Miniature Tension Compression Sensor FLAE is normally within -24mV...+24mV for tension/compression force measurement.
Example one:Miniature traction/compression load cell FLAE-10N with 2.0mV/V sensitivity powered by 5V DC,the output range is -10mV...+10mV.
Example two: M3 Threaded Compression And Traction Force Sensor FLAE-20N with 2.0mV/V sensitivity powered by 10V DC,the output range is -20mV...+20mV.
A signal conditioner can be used with miniature force transducer FLAE to deliver -5~5V, 0-10V or 4-20mA output.
Example one: Miniature Tension Compression Force Transducer FLAE-100N working with -10-10V amplifier,the Force-Voltage relationship will be 0-100N compression load VS 0-10V output,0-100N traction load VS 0-(-10V) output, which is linear regardless of the measurement error. When you get 5V output, it means the current load is 50N compression force, when you get -1V output, it means the current load is 10N tensile force,and so on.
Example two: Miniature Tension Compression Sensor FLAE-100N working with 4-12-20mA amplifier,the Force-Current relationship will be 0-100N compression load VS 12-20mA output, 0-100N traction load VS 12-4mA output, which is linear regardless of the measurement error. Namely 12mA output corresponds to “0” load, 12.8mA output corresponds to 10N compressive load, 8mA output corresponds to 50N tensile load, and so on.
M3 Threaded Miniature Force Transducer With 10mm Diameter Tension Compression Sensor
Click here to download datasheet
|
|

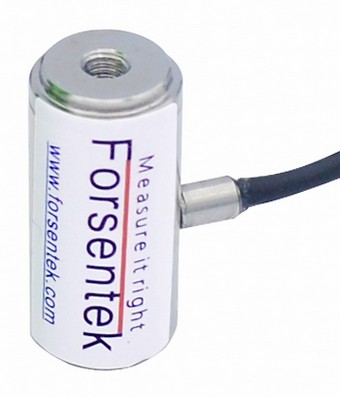

M3 Threaded Miniature Force Transducer With 10mm Diameter Tension Compression Sensor Images
|
